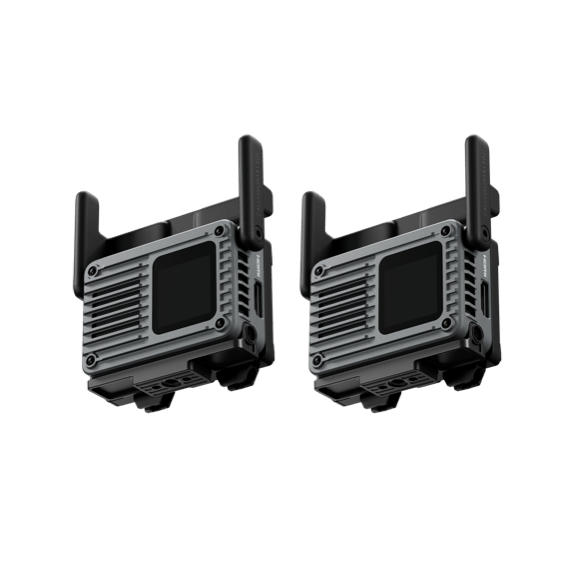

Built for demanding film sets, this next-generation SDR transmission system lets one transmitter feed up to 8 receivers, each with uplink control. It supports up to 5 transmitters and 40 receivers working at the same time, and delivers stable 4K monitoring even in busy, high-interference environments. Automatic Channel 2.0 lets the units detect each other and schedule frequency bands on their own, so you don't need to plan channels by hand. The system hops frequencies as conditions change to keep every feed smooth.
Each unit works as both transmitter and receiver, so you can switch roles on set without working out a transmitter-to-receiver ratio in advance. At about 136 g, it adds little weight to handheld gimbals. You can switch between camera feeds from the unit itself or in the Ronin app, and send the signal to professional monitors or to a phone or tablet.
Key specs
- Video: DCI 4K/60fps, 10-bit HDR, H.265, up to 50 Mbps bitrate
- Range: up to 4 km
- Latency: as low as 35 ms, with responsive uplink control for focus and gimbal
- Multi-device: 1 transmitter to 8 receivers; up to 5 transmitters and 40 receivers simultaneously
- Automatic Channel 2.0 with frequency sweep indication and channel conflict diagnosis
- Integrated transceiver design, about 136 g
- Ports: 1× HDMI, 2× USB-C
- Monitoring output: SDI, HDMI or DP, plus USB-C to a phone or tablet
Compatible:
DJI Ronin 2, DJI RS 3 Pro, RS 4, RS 4 Pro, RS 5; DJI Master Roller
